Thuis /Producten/Golfkartonproductielijn/Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls

Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls

1
MOQ
USD2,000~150,000/set
Prijs
Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Productnaam: Steam Single Facer voor golfkartonproductielijn 1400-model
categorie: Golfkartonproductielijn
Model: 1400
Kleur: Aanpasbaar
Breedte: 1400 mm
Ontwerpsnelheid: 80~100m/min
Stroom: 5,5 kW
gewicht: 3 T
Basis informatie
Plaats van herkomst: Cangzhou, China
Merknaam: GERUN
Certificering: ISO,CE
Modelnummer: GR-SSF1400
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Plastic filmbekleding of houten kistverpakking (gekozen)
Levertijd: 15 ~ 60 werkdagen
Betalingscondities: T/T, D/P, D/A, MoneyGram, Western Union, L/C
Levering vermogen: 30set/maand
Productomschrijving
Steam Single Facer For Corrugated Cardboard Production Line 1400 Model 3 Tons
The single-face corrugating unit (commonly known as the "single facer") is the core forming equipment of a corrugated board production line. You can think of it as the "heart" of the entire production line.

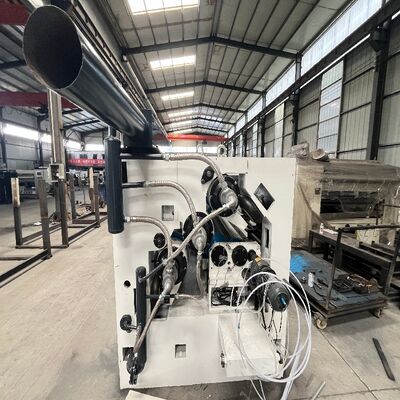

Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls 0
Its core task is very clear: to press flat base paper (fluting) into wavy corrugations and bond it with another flat sheet of linerboard, producing single-face corrugated board.
Workflow Process
The single facer completes the transformation from base paper to formed board through a set of precise mechanical components:
  • Corrugating: The base paper (fluting) passes through high-temperature (typically 160°C-180°C) corrugating rolls, where it is pressed into standard U-shaped or V-shaped flutes.
  • Adhesive Application: The tops of the formed flutes are coated with an even layer of adhesive (starch or corn-based glue).
  • Laminating: The glued flutes and the linerboard are precisely bonded together under the pressure roll, forming a sturdy single-face corrugated board.
Production Line Role
  • Supplies the Basic Unit: The single-face corrugated board it produces is the foundation for subsequent processing. In the double facer process, two single-face boards are combined to ultimately produce three-ply, five-ply, or seven-ply corrugated board.
  • Determines Board Quality: The forming quality of the flutes, adhesive strength, and flute profile stability are all directly determined by the single facer. If problems occur here (e.g., crushed flutes, delamination), subsequent processes cannot compensate.
  • Efficiency Bottleneck: The operating speed of the single facer usually determines the maximum production rate of the entire line.
Structural Features
  • The suction type structure, designed to cover high pressure powerful fan. After the wind, the air source device with censored and electrical control on the same operation counters, the distance from the host machine will not less than 1.5 meters, operating side closed all the hood.
  • Corrugated roller adopt 52 CrMo alloy steel, the conditioning, laser quenching, surface polishing, corrugated roller diameter 280 mm, surface hardness HRC60 degrees. Key parts tile roller, pressure roller bearing used in wafangdian bearing resistance to high temperature.
  • Glue wallboard board structure, pneumatic control back to glue, glue rubber roller surface 25 pits processing line network hard chromium plating processing, scraping the plastic roller surface is hard chromium plating processing grinding.
Product Details

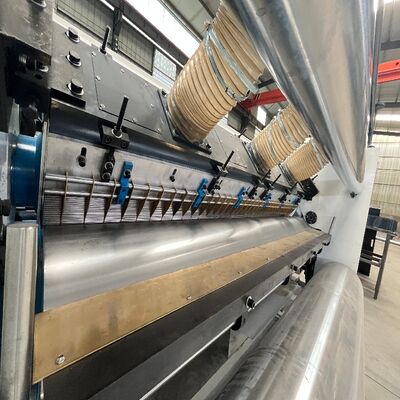

Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls 1
Technical Specifications
Product Name Steam Single Facer For Corrugated Cardboard Production Line
Category Corrugated Cardboard Production Line
Model 1400
Width 800~1400mm
Colour Customizable
Weight 3 T
Design Speed 80~100m/min
Power 5.5kw
Our Company

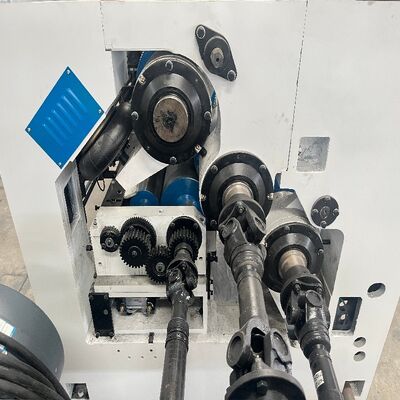

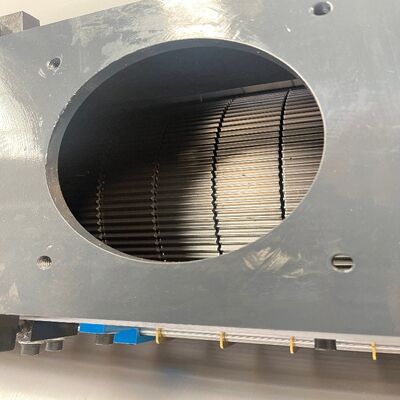

Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls 2 Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls 3
Product Packaging

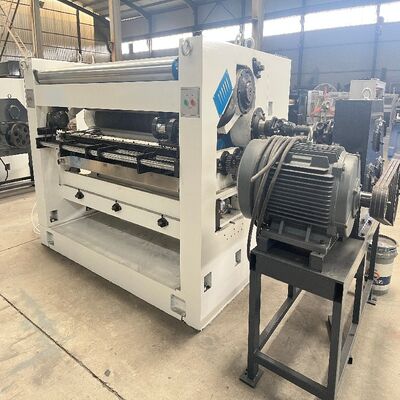

Steam Single Facer For Corrugated Cardboard Production 1400 Model Alloy Corrugating Rolls 4
