MY1080 Automatic Corrugated Carton Die Cutting Machine with 1080×780 mm Max Paper Size and 7500 sheets/h Max Speed

1 sets
MOQ
To be negotiated
Prijs
MY1080 Automatic Corrugated Carton Die Cutting Machine with 1080×780 mm Max Paper Size and 7500 sheets/h Max Speed
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Garantie: 1 jaar
type: Automatisch
Snelheid: 0-100 stukken/min
Voorwaarde: Nieuw
Service na verkoop verleend: Online ondersteuning, videotechnische ondersteuning
Gebruik: Sterven snijden papier
Kleur: Grijs wit,
Verpakkingstype: Plastic, hout
Basis informatie
Plaats van herkomst: Hebei, China
Merknaam: GR
Certificering: CE,ISO
Modelnummer: MIJN1500A
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Houten kistverpakking (optioneel) of goed verpakte plastic folieverpakking
Levertijd: 40-50 dagen
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 10 sets/maand
Productomschrijving
MY1080 Automatic Corrugated Carton Die Cutting Machine
Designed for fast and accurate packaging cutting, the MY1080 High Configuration Full Automatic Corrugated Carton Die Cutting Machine provides advanced die cutting and creasing solutions for the packaging industry, delivering exceptional performance and precision.

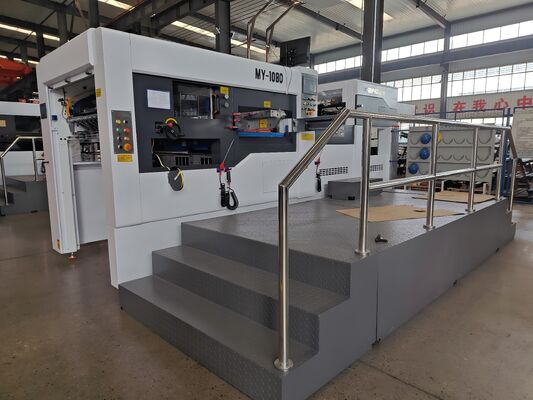

MY1080 Automatic Corrugated Carton Die Cutting Machine with 1080×780 mm Max Paper Size and 7500 sheets/h Max Speed 0MY1080 Automatic Corrugated Carton Die Cutting Machine with 1080×780 mm Max Paper Size and 7500 sheets/h Max Speed 1
Key Features
A. Feeding and Collecting System
  • Extra feeder processes paper and corrugated board, equipped with BECKER vacuum pump
  • Central monitor installation for easy viewing of back section
  • Pre-paper pile design and special pneumatic bench save significant time
  • Non-stop sampling system enables board accuracy checks without machine stoppage
B. Positioning System
  • Additional brush wheels and pressing wheels for thin paper and corrugated board operation
  • Advanced push and pull lay registration ensures die cutting precision
  • Rikko light front lay detection system prevents slanted paper from entering main body
C. Main Body
  • Automatic centralized lubricating system with main chain lubrication controlled via HMI
  • Patented shock absorption system prolongs main body life and increases pressure capacity
  • Taiwan-made intermittent gearbox ensures accurate registration and reduces gripper attack
D. Die-cutting and Delivery System
  • Diecutting chase accurately fixed by pneumatic lock system
  • Diecutting plate insertion and removal via air floating device
  • Electric clutch system of main chain ensures steady operation during high-speed stops
  • Main chain and assist chain periodically lubricated via PLC control
  • Protection window maintains main body cleanliness
  • Lightweight aluminum alloy gripper bars with Renold UK or IWIS GERMANY chains ensure precision
E. Paper Collecting System
  • Back and side aligning paper systems ensure orderly automatic paper feeding
  • Simple structure with quick operation capabilities
  • Electric back aligning paper adjustment - three times faster than manual operation
  • Front machine monitoring of back aligning paper
  • Double detection switch monitors paper order
  • Sampling capability during machine operation
  • Automatic alarm when paper collecting reaches capacity
  • Quantitative paper setting from 10 to 9999 sheets with automatic cutoff at set value
Technical Specifications
Model MY-1080
Die cutting type Pressed flat die cutting (Lower side movable, upper side unmovable)
Max paper transmitting size 1080×780 mm
Min paper transmitting size 400×350 mm
Max die cutting size 1070×760 mm
Min gripper size 6 mm
Max die cutting pressure 350 N/cm²
Paper processed Cardboard: 200-2000 g/㎡
Max die cutting speed 7500 sheets/h
Min feeding pile height 1100 mm (above the level)
Total power ~16.5kw
Total weight ~15 T
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Includes full set of maintenance and operation manuals
MY1080 Automatic Corrugated Carton Die Cutting Machine with 1080×780 mm Max Paper Size and 7500 sheets/h Max Speed 2
Our Services
MY1080 Automatic Corrugated Carton Die Cutting Machine with 1080×780 mm Max Paper Size and 7500 sheets/h Max Speed 3
