Automatic Corrugated Carton Flexo Printing Machine with 100-130m/min Speed and Consistent Print Quality for Packaging Industry

1 sets
MOQ
To be negotiated
Prijs
Automatic Corrugated Carton Flexo Printing Machine with 100-130m/min Speed and Consistent Print Quality for Packaging Industry
Kenmerken Galerij Productomschrijving Ratings & Review Verzoek om een Citaat
Kenmerken
Specificaties
Garantie: 1 jaar
type: Automatisch
Snelheid: 100-130m/min
Gebruik: Druk het Inlassen
Kleur: Wit, zwart
Verpakkingstype: Kunststof folie
Basis informatie
Plaats van herkomst: China
Merknaam: GR
Certificering: CE, ISO
Modelnummer: GYM920
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Houten kistverpakking (optioneel) of goed verpakte plastic folieverpakking
Levertijd: 30-60DAGEN
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 10 sets/maand
Productomschrijving

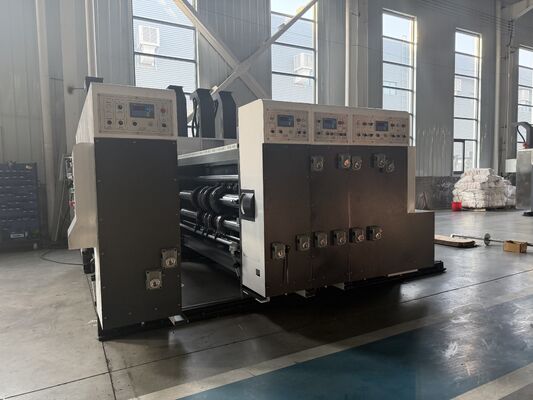

Automatic Corrugated Carton Flexo Printing Machine
Designed to deliver consistent print quality and fast setup times for the packaging industry, this advanced flexo printing machine operates at speeds of 100-130m/min.
Automatic Corrugated Carton Flexo Printing Machine with 100-130m/min Speed and Consistent Print Quality for Packaging Industry 0
Feeding Unit
Advanced paper feeding technology ensures precise material handling and efficient operation.
  • Taiwan Province leading edge paper feeding technology with bearing steel paper feeding wheel shafts
  • 7-inch color touch screen HMI for communication between feeding, printing, slotting, and die-cutting sections
  • Suction fan assisted paper feeding with frequency converter controllable motor for power efficiency
  • Leading edge cardboard positioning reduces length error impact
  • Electric adjustment for left/right stop gauges and cardboard dragging frame
  • One-button positioning with safety alarm system and pneumatic interlocking
  • High-quality seamless steel pipe lower rollers with dual-layer rubber coating
Printing Unit
Printing Plate Roller
  • Diameter: ￠295mm (including plate diameter ￠305mm)
  • High-quality steel construction with hard chromium plating
  • 360° electric circumferential adjustment during operation or stop
  • Automatic zeroing and plate hanging position features
Impression Roller
  • High-quality seamless steel pipe with precision grinding and electroplating
  • Backlash-free adjustment mechanism for transmission accuracy
  • Manual micro gap adjustment with scale display (0-12mm range)
Automatic Corrugated Carton Flexo Printing Machine with 100-130m/min Speed and Consistent Print Quality for Packaging Industry 1
Metal Anilox Roller
  • Cantilever structure for easy installation and maintenance
  • Manufactured by 'Haili Roller' with mesh options: 200, 220, 250, 280 lines/inch
  • Pneumatic pressing action with automatic lifting
  • Optional ceramic net roller (200-400 lines/inch) available
Rubber Roller
  • High-quality seamless steel tubes with Ding Qing rubber surface
  • Precision CNC grinding for accuracy
  • 1:200 double-stage worm gear fine adjustment
Ink Supply System
  • One-way diaphragm type pneumatic ink pump with filtration
  • Automatic ink quantity detection with alarm system
  • Transparent ink supply pipes and storage cups
Slotting Unit
Automatic Corrugated Carton Flexo Printing Machine with 100-130m/min Speed and Consistent Print Quality for Packaging Industry 2
Touch Screen Operation Control
  • PLC programming automation system with data input for paper product dimensions
  • One-button automatic positioning with manual fine-tuning capability
  • Taiwan Province Delta frequency converter motor control
Six-Axis Computer-Controlled Slotting
  • Single-shaft double-knife slotted structure with internal tooth design
  • 7mm standard thickness grooving knives with alloy steel material
  • Linear guide rail technology for precision slotting
  • Ten-screw automatic adjustment system
Pre-pressing and Line Pressing
  • High-quality steel upper and lower shafts with dynamic balance
  • Four groups of line pressing wheels to prevent cardboard crushing
  • Manual gap adjustment with 2-12mm range
Die-cutting Unit
Automatic Corrugated Carton Flexo Printing Machine with 100-130m/min Speed and Consistent Print Quality for Packaging Industry 3
Knife Plate Roller
  • Outer diameter: ￠260mm
  • High-quality cast steel with surface grinding and balance correction
  • 10M bolt holes with 100mm axial spacing
  • Die cutter height: 25.4mm
Rubber Roller (Upper Roller)
  • Diameter: < ￠295.5mm (rubber pad diameter: 311.5mm)
  • Quick-change rubber pad with wear resistance
  • Electric gap adjustment with air-lock mechanism
  • 50mm transverse traveling device for even wear
Drive System Components
  • High-precision helical gear transmission with 20GrMnTi alloy steel
  • Keyless tensioning connecting sleeve for zero-gap operation
  • Automatic spray lubrication system
  • 'Dongli' frequency converter main motor with Taiwan Province Delta controller
  • NSK imported main bearings with Wahalo domestic bearings
  • Zhejiang Zhengtai or Schneider electrical components
Technical Parameters
Working Speed 130 pcs/min
Max Feeding Board Size 900*2100 mm
Min Feeding Board Size 250*600 mm
Maximum Printing Area 900*2000 mm
Standard Plate Thickness 7.2 mm
Adapted Paperboard Thickness 1-12 mm
Printing Precision ±0.5 mm
Slotting Precision ±1.5 mm
Die Cutting Precision ±1 mm
Packing and Shipping
  • Moisture-proof and shock-proof packaging suitable for long-distance road transportation
  • Designed for various weather conditions
  • Complete set of maintenance and operation manuals included
Automatic Corrugated Carton Flexo Printing Machine with 100-130m/min Speed and Consistent Print Quality for Packaging Industry 4
Our Services
How is the warranty of the machine?
Warranty period: 12 months from shipping date. Warranty excludes misuse, accidental damage, or operator error. During warranty, we supply spare parts. Contact us for detailed support via photos and videos.
How about the after-sale service?
24/7 online support via Email, Skype, WeChat, WhatsApp. Problem resolution through videos/pictures. One year warranty for spare parts replacement.
Is payment safe for first-time cooperation?
Video verification at every production link guarantees product receipt. We accept various safe payment methods as required.
What is your minimum order quantity? Can you send samples?
Minimum quantity: 1 set. As machinery equipment, samples are not feasible. We provide detailed specifications, videos, and comprehensive product information.
